Venice X

The Venice X is a complete hardware and software solution for a SmartRadio or connected audio product. It provides a simple solution for creating products that combine the reliability of DAB+ with the flexibility of Wi-Fi and Bluetooth TM connectivity.



  • Description

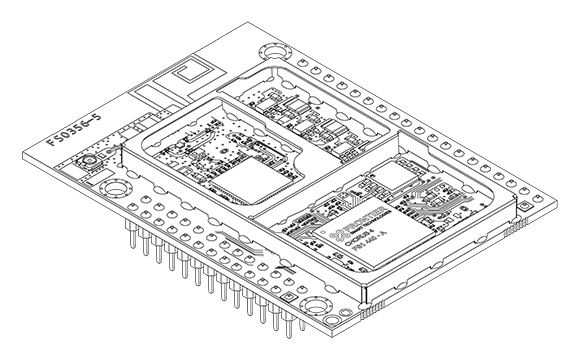

    The Venice X module is a complete hardware and software solution for a SmartRadio or connected audio product. It provides the simplest solution to create products that combine the reliability of DAB+ with the streaming audio over the Internet.

    Based around Frontier’s powerful Chorus 4 processor, Venice X streams radio and music files in a variety of formats including AAC, AAC+, MP3 and FLAC. The module also supports a full colour display. Frontier provides modules pre-installed with software which can be configured to customer requirements. Frontier provides the Venice X evaluation and reference platform, which can be used to enable rapid development of Venice X-based systems.

    Audio is delivered via DAB+, Wi-Fi and Bluetooth® connectivity.

  • Applications

    SmartRadios

    Hybrid Radios

    Wi-Fi Speakers

    Next generation Bluetooth® speakers

    Home audio systems

    Soundbars

    Headphones

  • Module Features

    Wi-Fi 802.11a/b/g/n – WEP, WPA, WPA2 security

    Bluetooth® 4.2 technology

    USB 2.0 High Speed device/host

    Ethernet

    On-module audio DAC

    Digital audio output - I2S or S/PDIF

    Infrared remote control

    Full master operation

    Automatically software upgradable in the field over Wi-Fi

    Audio post-processor on-module EQ

    Wi-Fi Protected Setup (WPS) for easy pairing with a home router

    RoHS compliant

    Temperature range:

      • Operation: 0 to +70°C
      • Storage: -40 to +85°C
  • SDK Features

    Airable Internet Radio service

    Spotify™ Hi-Fi

    Deezer™

    Calm Radio™

    Klassik Radio™

  • Benefits

    Enhanced performance and functionality

    Highly integrated and optimised solution to allow reliable products to be created in minimal time

    Spotify Connect allows for Spotify Hi-Fi Audio to be played

    Frontier’s app for SmartRadio setup and remote control

    Fully compliant to DAB+ standards and Digital Tick Mark certified

Download PDF

The Venice X module is a complete hardware and software solution for a SmartRadio or connected audio product. It provides the simplest solution to create products that combine the reliability of DAB+ with the streaming audio over the Internet.

Based around Frontier’s powerful Chorus 4 processor, Venice X streams radio and music files in a variety of formats including AAC, AAC+, MP3 and FLAC. The module also supports a full colour display. Frontier provides modules pre-installed with software which can be configured to customer requirements. Frontier provides the Venice X evaluation and reference platform, which can be used to enable rapid development of Venice X-based systems.

Audio is delivered via DAB+, Wi-Fi and Bluetooth® connectivity.

SmartRadios

Hybrid Radios

Wi-Fi Speakers

Next generation Bluetooth® speakers

Home audio systems

Soundbars

Headphones

Wi-Fi 802.11a/b/g/n – WEP, WPA, WPA2 security

Bluetooth® 4.2 technology

USB 2.0 High Speed device/host

Ethernet

On-module audio DAC

Digital audio output - I2S or S/PDIF

Infrared remote control

Full master operation

Automatically software upgradable in the field over Wi-Fi

Audio post-processor on-module EQ

Wi-Fi Protected Setup (WPS) for easy pairing with a home router

RoHS compliant

Temperature range:

    • Operation: 0 to +70°C
    • Storage: -40 to +85°C

Airable Internet Radio service

Spotify™ Hi-Fi

Deezer™

Calm Radio™

Klassik Radio™

Enhanced performance and functionality

Highly integrated and optimised solution to allow reliable products to be created in minimal time

Spotify Connect allows for Spotify Hi-Fi Audio to be played

Frontier’s app for SmartRadio setup and remote control

Fully compliant to DAB+ standards and Digital Tick Mark certified

Applications

Portable radio
Home audio systems
Soundbars
Podcast players
